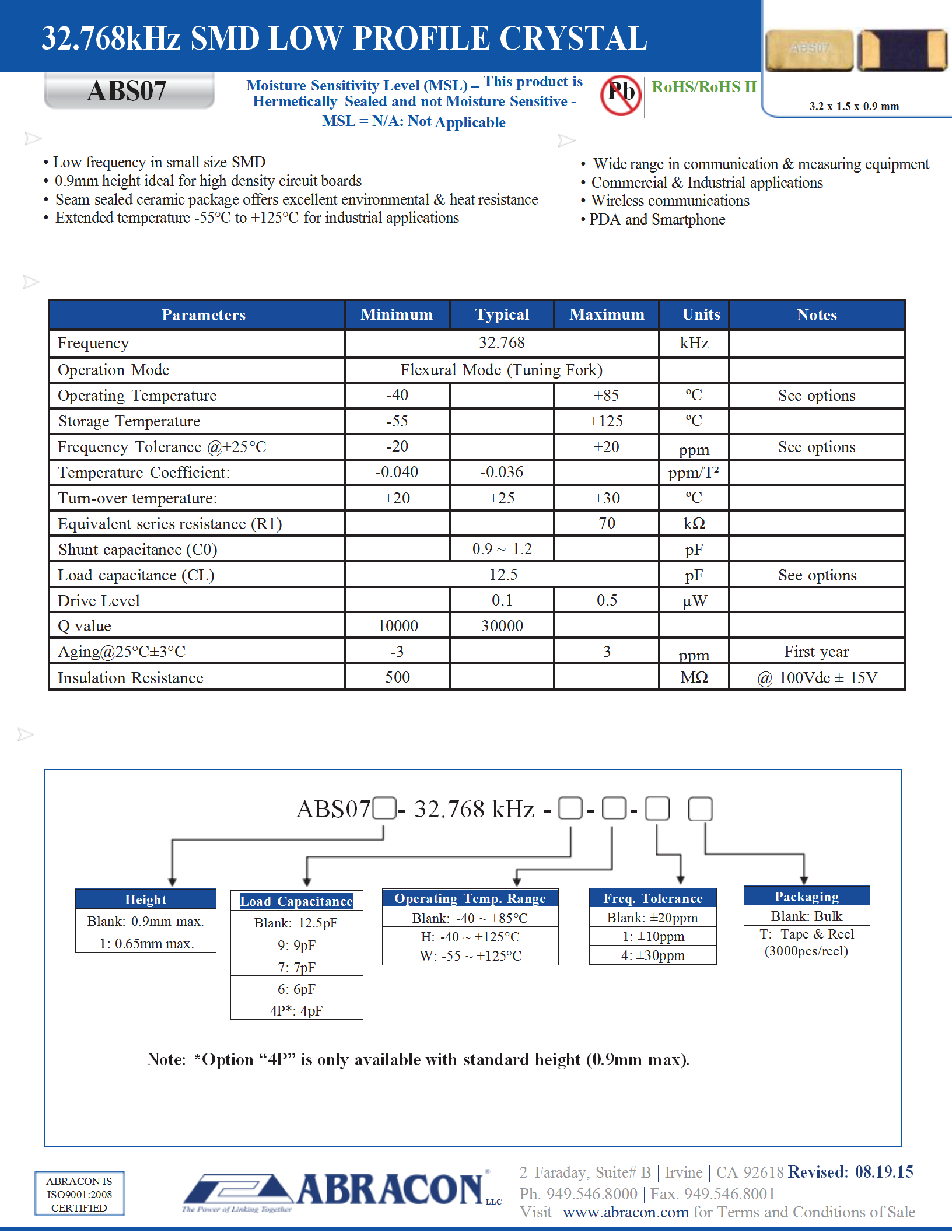

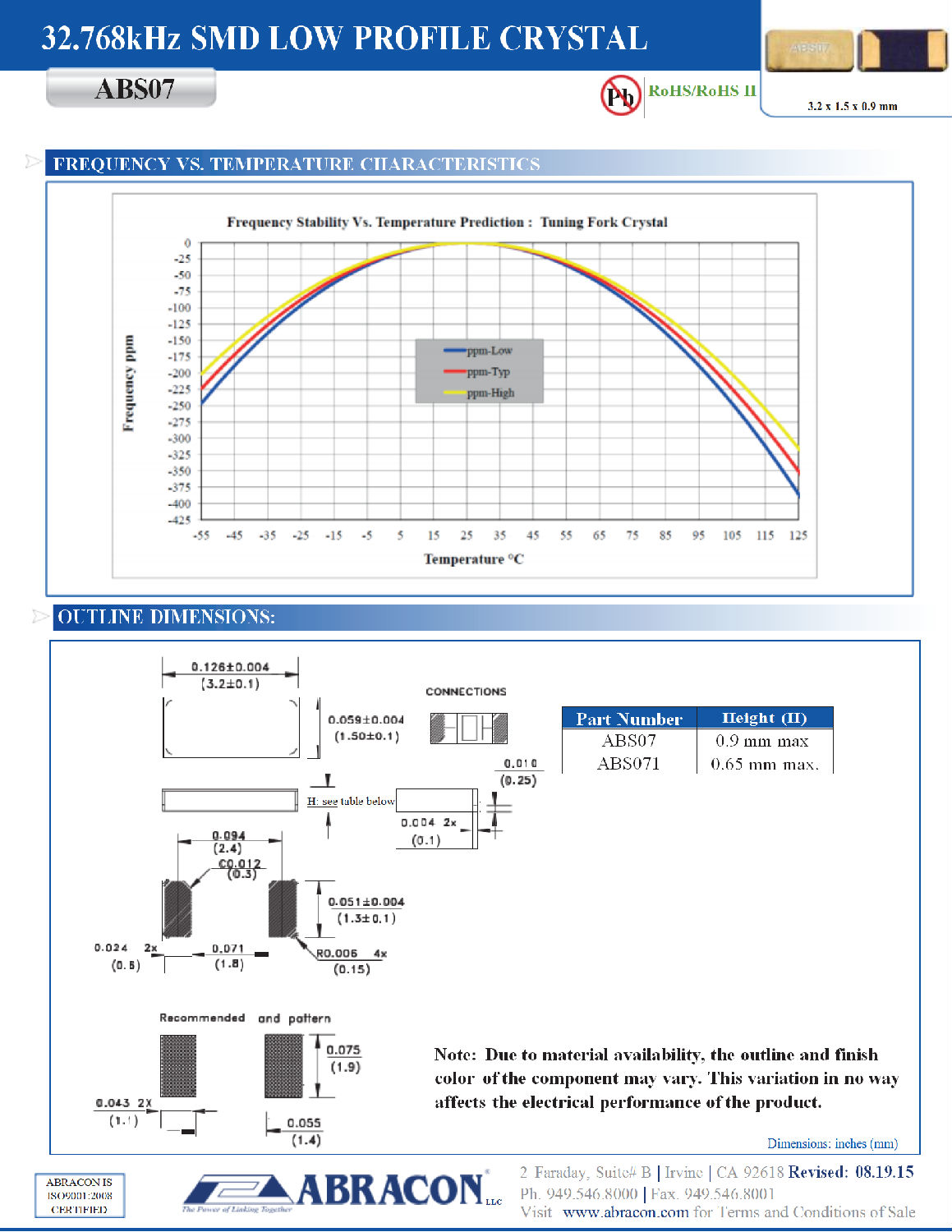

【10PPM高精度晶振】ABRACON3215贴片晶振,ABS07无源晶体

订购热线:0755-33270075
立即咨询
型号ABS07
Brand/品牌abracon
Series/系列ABS07
Type/类别KHZ晶体
Size/尺寸3.2*1.5*0.9mm

Frequency/频率

32.768KHZ

Frequency Stability/频率稳定度

±10ppm,±20ppm

Load Capacitance/负载电容

6-13pf




更多型号

  • ABS07-120-32.768KHZ-T

ABS07

CRYSTAL 32.7680KHZ 6PF SMD



  • ABS07-166-32.768KHZ-T

ABS07

IOT 32.786KHZ XTAL


  • ABS07-32.768KHZ-1-T

ABS07

CRYSTAL 32.7680KHZ 12.5PF SMD


  • ABS07-32.768KHZ-4-T

ABS07

CRYSTAL 32.7680KHZ 12.5PF SMD


  • ABS07-32.768KHZ-6-4-T

ABS07

CRYSTAL 32.7680KHZ 6PF SMD


  • ABS07-32.768KHZ-6-T

ABS07

CRYSTAL 32.7680KHZ 6PF SMD


  • ABS07-32.768KHZ-7-1-T

ABS07

CRYSTAL 32.768KHZ 7PF SMD


  • ABS07-32.768KHZ-7-T

ABS07

CRYSTAL 32.7680KHZ 7PF SMD


  • ABS07-32.768KHZ-9-1-T

ABS07

CRYSTAL 32.768KHZ 9PF SMD


  • ABS07-32.768KHZ-9-4-T

ABS07

CRYSTAL 32.7680KHZ 9PF SMD


  • ABS07-32.768KHZ-9-H-T

ABS07

CRYSTAL 32.7680KHZ 9PF SMD


  • ABS07-32.768KHZ-9-T

ABS07

CRYSTAL 32.7680KHZ 9PF SMD


  • ABS07-32.768KHZ-T

ABS07

CRYSTAL 32.7680KHZ 12.5PF SMD


  • ABS07-LR-32.768KHZ-6-1-T

ABS07-LR

CRYSTAL 32.768KHZ 6PF SMD


  • ABS07-LR-32.768KHZ-6-T

ABS07-LR

CRYSTAL 32.768KHZ 6PF SMD
